VitroGel® RGD High Concentration

RGD modified – tunable, xeno-free hydrogel – high concentration (3 mL kit)

VitroGel RGD High Concentration

VitroGel® RGD High Concentration is a tunable, xeno-free (animal origin-free) hydrogel system modified with cell adhesive peptide RGD to promote cell attachment and cell-matrix interactions during the 3D cell culture. VitroGel RGD High Concentration comes with VitroGel Dilution Solution to adjust the final hydrogel strength from 10 to 4000 Pa.

VitroGel High Concentration hydrogels are our xeno-free, tunable hydrogels for researchers wanting full control to manipulate the biophysical and biological properties of the cell culture environment. The tunability of the hydrogel gives the ability to create an optimized environment for cell growth. The hydrogel system has a neutral pH, transparent, permeable and compatible with different imaging systems. The solution transforms into a hydrogel matrix by simply mixing with the cell culture medium. No cross-linking agent is required. Cells cultured in this system can be easily harvested with our VitroGel® Cell Recovery Solution. The hydrogel can also be tuned to be injectable for in vivo studies.

From 3D cell culture, 2D cell coating to animal injection, VitroGel makes it possible to bridge the in vitro and in vivo studies with the same platform system.

Mix & Match – 3D Cell Culture Your WAY!

Unique to VitroGel High Concentration hydrogels is the ability to tailor create a multi-functional hydrogel by blending different types of VitroGel.  VitroGel® RGD High Concentration can be “mix & matched” with other VitroGel High Concentration hydrogels such as VitroGel® IKVAV, VitroGel® YIGSR, VitroGel® MMP, and VitroGel® COL to create a customized multi-functional hydrogel. Using this flexible and powerful hydrogel system, scientists customize their 3D culture micro-environment for different applications.

Learn more about the “Mix & Match” features >

Specifications

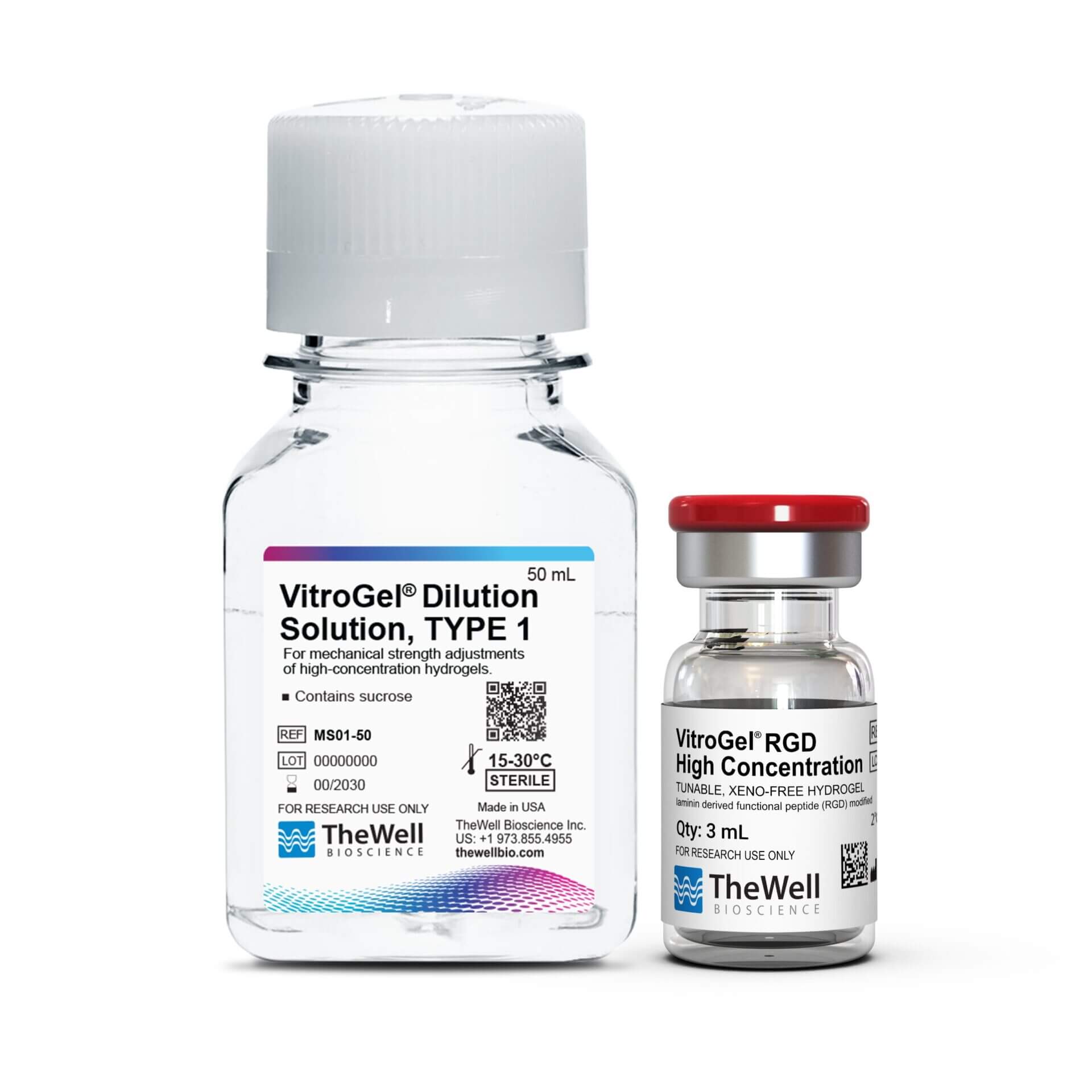

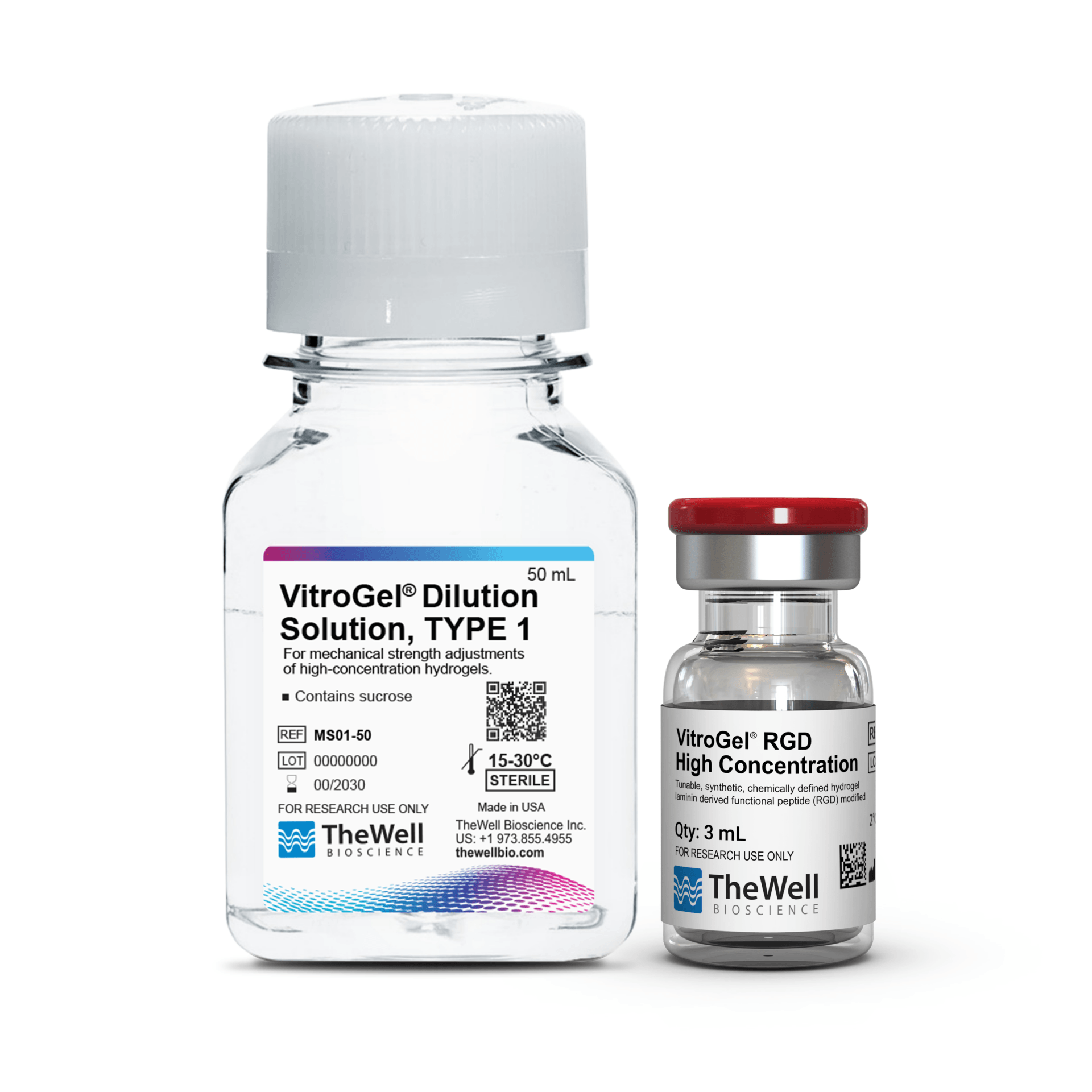

ContentsVitroGel® RGD High Concentration, 3 mL
VitroGel® Dilution Solution, 50 mL
Hydrogel FormulationXeno-free tunable hydrogel modified with RGD peptide.
UseGood for adhesion cells or cells requiring stronger cell-matrix interactions.
Mix & MatchCan be blended with other versions of VitroGel concentrated hydrogels to create a custom multi-functional matrix.
OperationRoom temperature
Hydrogel Strength10 to 4,000 Pa of G’ depending on dilution ratio.
Dilute with VitroGel Dilution Solution (TYPE 1 or TYPE 2) for different concentrations.
pHNeutral
ColorTransparent
Cell HarvestingVitroGel Organoid Recovery Solution
5-15 min cell recovery
InjectableInjectable hydrogel
StorageStore at 2-8°C. Ships at ambient temperature
Number of UsesDilution ratio:
1:2 = 225 uses at 50 µL per well
1:3 = 300 uses at 50 µL per well
1:5 = 450 uses at 50 µL per well

3D Cell Culture Process in 20 Minutes

VitroGel High Concentration hydrogels are easy to use. There is no cross-linking agent required. Work confidently at room temperature.

Tunable Hydrogel Strength

Simply diluting the hydrogel controls the gel strength.

Protocols / Handbooks / Resources

Video Protocols & Demonstrations

VIDEO PROTOCOL TIP

3D Cell Culture
VitroGel High Concentration Hydrogels

VIDEO PROTOCOL TIP

2D Cell Coating
Method 1

VitroGel High Concentration Hydrogels

VIDEO PROTOCOL TIP

2D Cell Coating
Method 2

VitroGel High Concentration Hydrogels

VIDEO PROTOCOL TIP

Cell Recovery
Method 1

from 3D & 2D cultures

VIDEO PROTOCOL TIP

Cell Recovery
Method 2

from 3D & 2D  cultures

VIDEO PROTOCOL TIP

Injectable Hydrogel
VitroGel System

Application Notes

APPLICATION NOTE

Images on oocyte maturation of the follicles in different culture systems using VitroGel 3D, RGD, and IYR

An Artificial Womb for the Womb

APPLICATION NOTE

Long-Term Neuron Culture Maturation in 3D Hydrogel Constructs

APPLICATION NOTE

APPLICATION NOTE

APPLICATION NOTE

3D Invasion of Glioblastoma Cells in VitroGel Hydrogel System

APPLICATION NOTE

Long Term 3D Tumor Spheroid Culture in VitroGel Hydrogel Matrix

APPLICATION NOTE

2D Coating and 3D Cell Culture with Human Dermal Fibroblasts

Data and References

Cell Type Behavior Reference Table – VitroGel RGD

Multiple studies have made use of RGD hydrogel in different tissue and cell types. RGD is commonly used as an immobilized, adhesive ligand in 3D hydrogels that allows researcher to study many different cellular processes and behaviors in normal physiological and pathological contexts.

Cell TypeBehavior
Goat bone marrow stromal cellsPromoted osteogenic differentiation
Rat bone marrow stromal cellsPromoted osteogenic differentiation
Rat osteoblastsIncreased cell attachment and spreading
Cell TypeBehavior
Biphasic synovial sarcoma SYO-1Cell proliferation and cell matrix interactions
Bone OSA 1777Cell proliferation and cell matrix interactions
Breast 4T1 Cell proliferation, division, migration, and invasion
Breast AU-565Cell proliferation and cell matrix interactions
Breast Cancer MCF-7Cell proliferation, intercellular connections
Breast E0771Cell proliferation and cell matrix interactions
Breast MDA-MB-231Cell proliferation, division, migration, and invasion
Breast T47DCell proliferation, division, migration, and invasion
Colorectal adenocarcinoma DLD-1 cellsCell proliferation and cell matrix interactions
Epithelial ovarian OV-MZ-6Promoted spheroid formation and proliferation
Epithelial ovarian SKOV-3Promoted spheroid formation and proliferation
Fuji CellsCell proliferation and cell matrix interactions
Glioblastoma SF 268Cell proliferation and cell matirx interaction
Glioblastoma SF 295Cell proliferation and cell matirx interaction
Glioblastoma SNB75Cell proliferation and cell matirx interaction
Glioblastoma U-251 MGCell proliferation and cell matirx interaction
Glioma U87-MGIncreased cell spreading and actin stress fiber assembly
Glioma U87-MGCell proliferation and cell matirx interaction
Glioma U373-MGIncreased cell adhesion duration and migration (on higher stiffness)
HEK 293Cell proliferation and cell matrix interactions
Huaman colon carcinoma HCT-8Cell proliferation and cell matirx interaction
Human colorectal carcinoma HCT 116cell proliferation, cell survival, and intercelluar networking
Human pancreatic cancer PANC-1cell proliferation and cellular interactions
Insulinoma ins-1 (Rat)Cell proliferation and cell matrix interactions
Liver carcinoma HepG2Cell proliferation and cell matirx interaction
Melanoma CellsCell proliferation and cell matrix interactions
Ovarian carcinoma OVCAR-3Cell proliferation and invasion
Primary glioblastom U87cell proliferation and cellular interactions
Prostate adenocarcinoma LNCaPIncreased cell attachment
Prostate CRPCCell proliferatin and invasion
Prostate DU145Cell proliferation and invasion
Prostate PC3Cell proliferation and invasion
Cell TypeBehavior
Bovine chondrocytesIncreased cell viability and proliferation
Bovine chondrocytesPromoted cell attachment, viability, and stress fiber formation
Human chondrocytesPromoted cell viability and proliferation
Cell TypeBehavior
Fibroblast NIH3T3 Promoted cell spreading
Fibroblasts NIH3T3Increased directional cell migration toward gradient
Human dermal fibroblasts Promoted cell survival and spreading
Human dermal fibroblastsIncreased cell adhesion and proliferation
Human foreskin fibroblastsPromoted cell spreading
Cell TypeBehavior
A549 cellsCell proliferation and invasion
MCF-12ACell proliferation and invasion
Mouse ovarian follicle cellsCell proliferation and invasion
Cell TypeBehavior
Beta TC3 CellsCell proliferation and cellular interactions
Cell TypeBehavior
Human embryonic kidney HEK293Promoted spheroid formation
Madin-Darby Canine KidneyPromoted formation of structured epithelial cysts
Cell TypeBehavior
Human hepatocytesIncreased number of filopodia and synthesis of albumin
Mouse hepatocytesPromoted cell viability
Cell TypeBehavior
Alveolar epithelial A549Inhibited cell detachment
Alveolar epithelial RLE-6TNIncreased cell attachment and mesenchymal differentiation
Cell TypeBehavior
Mouse skeletal myoblastsPromoted cell attachment, proliferation, and myofibril formation
Myoblasts C2C12Promoted cell proliferation and differentiation
Cell TypeBehavior
Chick dorsal root ganglion cellsIncreased neurite length, neurite outgrowth, and neurite number
In vivo lesioned rat cortexSupported angiogenesis and inhibited glial scars
In vivo lesioned rat spinal cordSupported angiogenesis and axon regeneration
Cell TypeBehavior
Human embryonic stem cellsIncreased retinal pigmented epithelium and optic vesicle development
Human iPSCCell proliferation, and cell matrix interactions
Human mesenchymal stem cellsIncreased cell viability
Mouse embryonic stem cells Promoted endothelial cell differentiation
Mouse mesenchymal stem cellsPromoted cell spreading and migration
Rat mesenchymal stem cellsIncreased cell adhesion and spreading
Rat mesenchymal stem cellsPromoted cell attachment and differentiation
Cell TypeBehavior
Human aortic smooth muscle cellsPromoted cell attachment
Human umbilical vein endothelial cellsIncreased cell adhesion, proliferation, migration, and angiogenesis
Human umbilical vein endothelial cellsIncreased cell adhesion and proliferation
Rat neonatal cardiacPromoted cell attachment and tissue regeneration and prevented apoptosis
TISSUE/ORGAN TYPECELL TYPEREADY TO USE HIGH CONCENTRATIONBEHAVIOR
Beta Cell BL5 human beta cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3D,
VitroGel MMP
Enhance spheroids formation
Beta TC3 cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cellular interactions
Bone Bone marrow stromal cells (rat)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Osteogensic differentiation , Cell attachment and osteoblast differentiation,Cell proliferation, cell viability, and cellular networking.
Osteoblasts (rat) VitroGel MSC,
VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell attachment and spreading
Bone marrow stromal cells (bovine) VitroGel MSC,
VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell spreading and osteocalcin expression
BreastMammary gland MCF10AVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitrolGel RGD,
VitroGel COL,
VitroGel MMP
Spheroid formation, MMP activity in response to TGF-B1
Mammary epithelium (mouse)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell invasion and dissemination
Cancer/TumorHuman colorectal carcinoma HCT 116VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation, cell survival, and intercellular networking
Huaman colon carcinoma HCT-8 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Glioma U87-MG VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel MMP,
VitroGel COL
Cell spreading and acting stress fiber assembly, cell proliferation, spreading, and migration, Cell migration dependent on mechancial force, Cell proliferation and cell matrix interaction
Gliobastoma SF 268VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitrolGel RGDCell proliferation and cell matrix interaction
Gliobastoma SF 295VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Glioblastoma SNB75VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Glioblastoma U-251 MGVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Prostate PC3VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel COL,
VitroGel IKVAV,
VitroGel RGD,
VitroGel MMP
Cell proliferation, reduced MMP release, invasion, migration, and spheroid metabolic activity.
Prostate LNCaPVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell attachment, proliferation, and prostate specific antigen release
Prostate CRPCVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and invasion
Prostate DU145VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and invasion
Melanoma B16F10VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel COL,
VitroGel YIGSR
Cell migration, invasion, MMP release, cell attachment and spreading
Breast MDA-MB-231VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel MMP,
VitroGel 3D
Cell invasion, spreading, proliferation, division, migration, and cluster growth
Fibrosarcoma HT1080VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell infiltration, attachment
Breast T47DVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel COL,
VitroGel 3D,
VitroGel RGD,
VitroGel MMP
Force dependent tubule formation, cell cluster growth, spheroid formation and proliferation
Breast 4T1VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation
Breast CTCVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3D,
VitroGel RGD
Cell proliferation
Breast E0771VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation spheroid formation
Brest AU-565VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation cell matrix interactions
Epithelial ovarian OV-MZ-6 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDSpheroid formation and proliferation
Epithelial ovarian SKOV-3 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDSpheroid formation and proliferation
Glioma U373-MG VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Cell adhesion, invasion and migration
Rhabdomyosarcoma (human) VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel YIGSR
Cell attachment and spreading
Melanoma SK-MEL-28 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Cell adhesion and proliferation
Melanoma K-1735VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Cell invasion
Melanoma A2058VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Collagenolytic activity
Brainstem glioma DIPGVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Cell proliferation and survival
Hela Cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3D,
VitroGel RGD,
VitroGel MMP
Cell proliferation
Colorectal adenocarcinoma DLD-1 cellsVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Giloma LRM55VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel IKVAV,
VitroGel MMP
Cell attachment
Melanoma WM 239AVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Cell invasion
Melanoma Cells VitroGel Hydrogel Matrix, VitroGel ORGANOID KitVitroGel RGDCell proliferation and cell matrix interaction
Insulinoma ins-1 (Rat)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Biphasic synovial sarcoma SYO-1VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation, cell matrix interation, and cell survival
Fuji Cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and cell matrix interaction
Chordoma Cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3DCell proliferation
Bone OSA 1777VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDSpheroid and cluster formation
Glioma RuGliVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel COL Integrin dependent cell adhesion
Breast Cancer MCF-7 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP,
VitroGel 3D
Cell proliferation, intercellular connections, morphological changes, MMP expression, and angiogenesis
Liver carcinoma HepG2 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell viability, growth, drug resistance, proliferation, and cellular matrix interaction
Human pancreatic cancer PANC-1 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Cell proliferation and cellular interactions
Primary breast (human)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Cell invasion, migration, and dissemination
Ovarian carcinoma OVCAR-3 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel MMP
Cell proliferation, cell matrix interactions
Ovarian OVCA429 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel MMP,
VitroGel COL
MMP dependent cell invasion
Human Osteosarcoma KHOSVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel 3D
Cell proliferation and spheroids formation
Human Osteosarcoma U2OSVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel 3D
Cell proliferation and spheroids formation
Human fibroblast-like synoviocytes (FLS)VitroGel Hydrogel Matrix, VitroGel ORGANOID KitVitroGel 3DCell proliferation and inflammatory responses
Human Liposarcoma 94T778VitroGel Hydrogel Matrix, VitroGel ORGANOID KitVitroGel 3DCell proliferation and spheroids formation
Human diffuse large B-cell lymphoma (DLBLC) SUDHL-10VitroGel Hydrogel MatrixCell viability, growth, drug resistance, proliferation, and cellular matrix interaction
Priess human lymphoblastoid cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
CartilageChondrocytes (bovine) VitroGel MSC,
VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell viability and proliferation
Chondrocytes (human) VitroGel MSC,
VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell viability and proliferation
Connective TissueDermal Fibroblasts (human)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell viability and spreading
Fibroblasts NIH3T3VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Directional cell migration toward gradient and cell spreading dependent on substrata rigidity
Foreskin fibroblasts (human)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel YIGSR,
VitroGel MMP
Cell spreading, substrata degradation, and cell invasion
Skin fibroblasts (skin) VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel IKVAV
Cell adhesion
Epidermal keratinocytesVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell viability
Epithelial CellsMouse ovarian follicle cellsVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD3D cell culture using ES-hydrogel can enhance vitro follicle culture by considering the permeability and stiffness of the gel.
Human Nthy-ori 3-1 cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
A549 cellsVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDEnhance cell proliferation and cell matrix interactions.
MCF-12AVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDEnhance cell proliferation and cell matrix interactions.
Immortalized bronchial epithelial cells HBEC-KRASVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel 3D
Cell proliferation
EyeCorneal endothelial B4G12VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit,
VitroGel Angiogenesis Assay
VitroGel RGD,
Vitrogel Angiogenesis Assay HC kit
Cell attachment and spreading
Retinal ganglion cells (xenopus)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Neurite outgrowth
Immune Cells CD8 + T cells VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
KidneyHuman embryonic kidney HEK293 VitroGel Hydrogel Matrix,
VitroGel HEK293,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
3D spheroids formation
Madin-Darby Canine KidneyVitroGel Hydrogel Matrix,
VitroGel HEK293,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel MMP
Epithelial cysts formation
Podocytes (human)VitroGel Hydrogel Matrix,
VitroGel HEK293,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Glomerular capillary formation
glomerular endothelial cells (human)VitroGel Hydrogel Matrix,
VitroGel HEK293,
VitroGel ORGANOID Kit,
VitroGel Angiogenesis Assay
VitroGel RGD,
Vitrogel Angiogenesis Assay HC kit
Glomerular capillary formation
Liver Hepatocytes (human)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Filopodia formation and synthesis of albumin and cell attachment
Hepatocytes (mouse, rat, swine)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel MMP
Cell viability, spearding, Albumin secretion
LungAlveolar basal epithelial A549VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell attachment
Alveolar epithelial RLE-6TNVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell attachment and mesenchymal differentiation
Pulmonary fibroblasts LL2 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel IKVAV
Cell adhesion
HFL1 lung fibroblasts CCL153VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell proliferation and spindle morphology
Lung cancer associated fibroblasts (human) VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDSubstrata contractility
Lung fibroblasts MCR-5VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
NGF-mediated substrata contraction
Muscle Myoblasts C2C12 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell proliferation, differentiation, attachment, myofibril formation, myotube formation, and integrin dependent cell adhesion
Skeletal myoblasts (mouse)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGDCell attachment, proliferation, and myofibril formation
Myoblasts (human)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell adhesion, alignment along fiber, and myotube formation
Myoblasts C25Cl48VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Cell proliferation, differentiation and myotube formation
Neural Dorsal root ganglion (chick)VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL
Neurite formation and force dependent neurite outgrowth
Neural PC12VitroGel Hydrogel Matrix
VitroGel RGD,
VitroGel IKVAV
Neurite outgrowth
Neural stem cell/ progenitor cell (rat)VitroGel STEM,
VitroGel Hydrogel Matrix
VitroGel RGD,
VitroGel IKVAV
Cell viability, attachment, and differentiation
Neural stem cell/ progenitor cell (human)VitroGel STEM,
VitroGel Hydrogel Matrix
VitroGel RGD,
VitroGel IKVAV,
VitroGel COL
Cell viability, attachment, and differentiation
Schwann cells (rat)VitroGel Hydrogel MatrixVitroGel RGDCell attachment and migration
Neural stem cell/ progenitor cell (mouse)VitroGel STEMVitroGel RGD,
VitroGel IKVAV
Cell adhesion and differentiation
Cortical astrocytes (rat)VitroGel Hydrogel MatrixVitroGel RGD,
VitroGel IKVAV
Cell adhesion
Spiral ganglion neurons (mouse)VitroGel Hydrogel MatrixVitroGel RGD,
VitroGel IKVAV
Neurite outgrowth
Motor neurons (human)VitroGel Hydrogel MatrixVitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Force dependent neurite outgrowth
Forebrain neurons (human)VitroGel Hydrogel MatrixVitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Force dependent neurite outgrowth
Cortical neurons (rat)VitroGel Hydrogel MatrixVitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Neuronal viability and neurite outgrowth
Dorsal root ganglion (rat)VitroGel Hydrogel MatrixVitroGel RGD,
VitroGel COL,
VitroGel IKVAV
Neurite outgrowth
Red Blood CellsRed Blood CellsVitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel 3DEnhance Spheroids and cluster formation and promote cell viability
PancreasB-cells MIN6 VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel IKVAV
Reduced apoptosis and increased insulin release
Stem Cells Mesenchymal stem cells (human)VitroGel MSCVitroGel RGD,
VitroGel COL,
VitroGel IKVAV,
VitroGel MMP
Cell viability, proliferation, differentiation, neuronal differntiation, neurite outgrowth, attachment, spreading, viability, and osteoblast differentiation
Mesenchymal stem cells (mouse)VitroGel MSCVitroGel RGD,
VitroGel MMP
Cell spreading and migration
Mesenchymal stem cells (rat)VitroGel MSCVitroGel RGDCell adhesion and spreading
Embryonic stem cells (mouse)VitroGel STEM,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel COL,
VitroGel YIGSR
Endothelial cell differentiation, neuronal differentiation, and neurite outgrowth
Induced pluripotent stem cells (human)VitroGel STEM,
VitroGel ORGANOID Kit
VitroGel RGD,
VitroGel YIGSR,
VitroGel IKVAV
Cell viability
Human stem cells from apical papilla SCAPVitroGel STEMVitroGel RGDCell viability
Hematopoietic Stem CellsVitroGel STEMCell viability
Adipose derived stem cells (human)VitroGel MSCVitroGel RGD,
VitroGel 3D,
VitroGel IKVAV
Cell viability, cell attachment
Vascular/cardiac Umbilical vein endothelial cells Vitrogel Angiogenesis Assay ,
VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
Vitrogel Angiogenesis Assay HC kitCell attachment, proliferation, migration, angiogenesis, gene expression changes, migratory cell infiltration, cell survival, and VEGF dependent migration
Neonatal cardiac (rat) Vitrogel Angiogenesis Assay,
VitroGel Hydrogel Matrix,
VitroGel ORGANOID Kit
Vitrogel Angiogenesis Assay HC kitCell attachment, tissue regeneration, and attachment similar to laminin
Aortic smooth muscle cells VitroGel Hydrogel MatrixVitrogel Angiogenesis Assay HC kitCell attachment
Endothelial (human)VitroGel Angiogenesis Assay Vitrogel Angiogenesis Assay HC kitCell differentiation
EndotheliocytesVitroGel Angiogenesis Assay Vitrogel Angiogenesis Assay HC kitCell migration
Microvascular endothelial cells (human)VitroGel Angiogenesis Assay Vitrogel Angiogenesis Assay HC kitCell mobility
Aortic endothelial cells (bovine)VitroGel Angiogenesis Assay Vitrogel Angiogenesis Assay HC kitForce dependent cell spreading
Capillary endothelial cells (bovine) VitroGel Angiogenesis Assay Vitrogel Angiogenesis Assay HC kitCapillary like network formation

Data

Figure 1.  Rheological properties of VitroGel RGD with DMEM medium.
A) – C)
The gel formation curve after mixing with DMEM (A), DMEM/F-12 (B), and RPMI (C) media. VitroGel RGD was diluted at 1:0,1:1, 1:2 and 1:3 (v/v) with VitroGel Dilution Solution (Type 1) and then mix with media at 4:1 (v/v) ratio; D) – F) The gel strength after 24 hrs incubation in DMEM (D), DMEM/F-12 (E), and RPMI (F) media. The hydrogel was prepared as method A and incubated at 37°C CO2 incubator for 24 hrs before the rheological test. (10 ~ 4000 Pa of G’ of regular products at dilutions. Customized high concentration product to reach over 20K Pa)

Figure 2. 3D culture of OP9 cells in VitroGel RGD.
Hydrogel was prepared at 1:3 dilution with VitroGel Dilution Solution (Type 1). The images were taken on days 2 and 7.  VitroGel RGD shows support for OP9 cell proliferation and cell-cell communication. The stronger cell-matrix interactions help the cells to form the cell-networking structure.

Figure 3. 3D view of OP9 cells growth in VitroGel RGD.
Cell networking structure formed in VitroGel RGD.

Figure 4. 3D culture of U87-MG cells in VitroGel RGD.
Cells can grow in 3D hydrogel at 1:1 and 1:3 dilution of VitroGel RGD. U87-MG cells shows cell networking structure and the cell morphology in VitroGel RGD indicating  a cell-cell and cell-matrix interaction.

References/Publications

View more publications on VitroGel products
High Concentration Kit Type

VitroGel RGD + Dilution Solution TYPE 1, VitroGel RGD + Dilution Solution TYPE 2
